How safety systems protect chemical equipment and process plants
Safety systems are layers, not a single device
In chemical equipment operations, safety systems are the engineered, procedural and organizational layers used to prevent loss of containment, uncontrolled reactions, overpressure, fire, toxic exposure and other process hazards. A plant should not depend on one alarm, one valve or one operator action to control a serious hazard. Effective protection normally combines process design, basic controls, alarms, safety instrumented functions, pressure relief, containment, fire and gas detection, emergency shutdown and documented work practices.
This layered approach matters because chemical processes often involve stored energy, flammable vapors, reactive materials, corrosive fluids or toxic substances. A pump seal leak, blocked outlet, cooling failure or wrong valve lineup can escalate quickly if safeguards are not independent, maintained and understood by operators. For related articles, see the Safety Systems category.
What counts as a safety system in chemical equipment
The term safety system is sometimes used loosely. In a process plant, the distinction matters because safeguards have different functions, response times and reliability assumptions. A control loop that keeps a reactor at its normal temperature is not the same as an independent shutdown function. A relief valve that limits vessel pressure is not the same as a gas detector that warns people to evacuate.
Common safety systems for chemical equipment include:
- Basic process control systems that keep temperature, pressure, level and flow within intended operating ranges.
- Alarm systems that alert operators when process variables move toward unsafe limits.
- Safety instrumented systems that automatically move the process to a safer state when defined conditions are reached.
- Pressure relief and vent systems that protect vessels, reactors, heat exchangers and piping from overpressure.
- Emergency shutdown systems that isolate energy or hazardous inventories during abnormal events.
- Fire and gas detection systems that identify flammable or toxic atmospheres and initiate alarms or actions.
- Containment, drainage and spill control systems that limit the spread of released chemicals.
- Mechanical integrity programs that keep safety-critical equipment suitable for service.
- Emergency response arrangements that define notification, evacuation, firefighting interface and release response.
The practical point is that a safety system is not just hardware. It also includes the design basis, operating limits, inspection tasks, training, bypass controls, management of change and proof that the system can still perform when needed.
The main protection layers and their roles
A useful review starts with a simple question: what is each layer expected to do before, during and after an abnormal event? The table below summarizes the main roles without treating any single layer as universally sufficient.

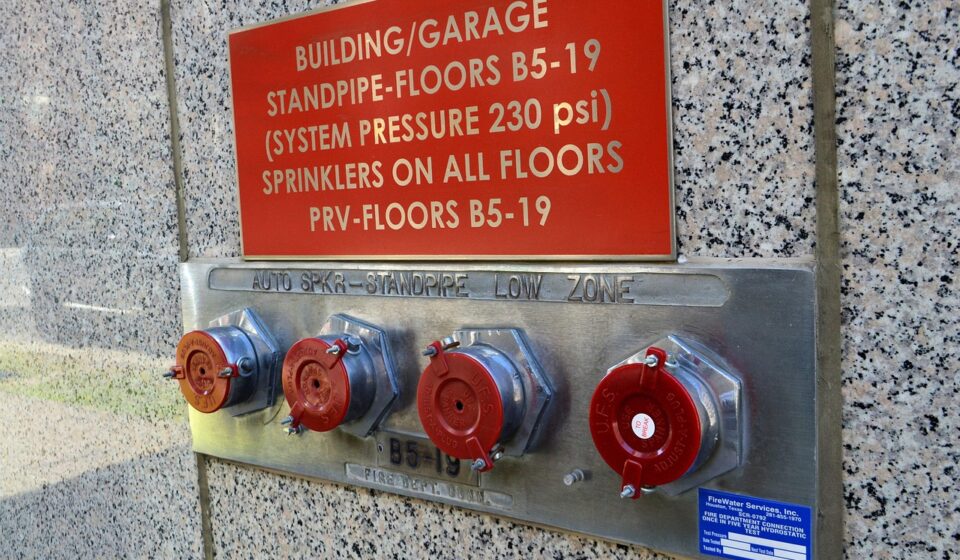

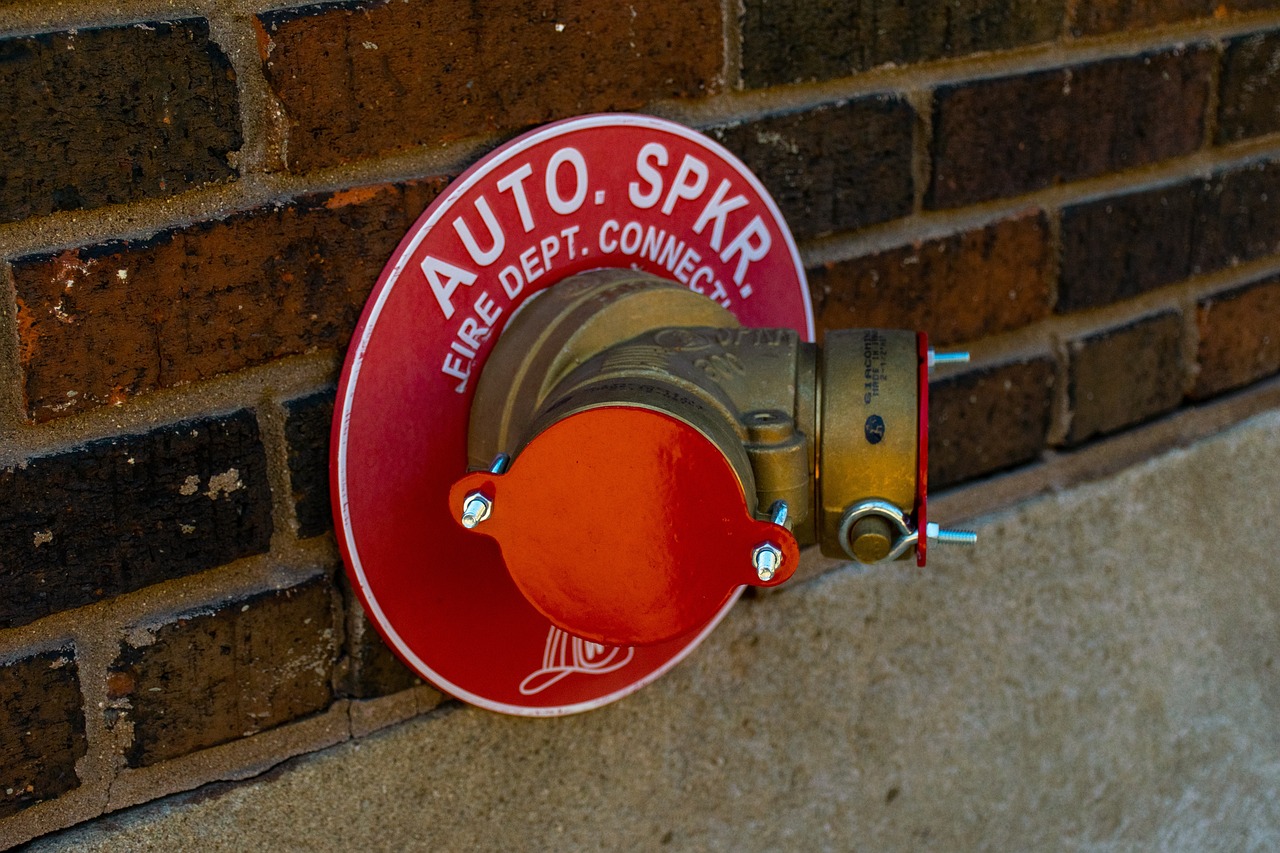

| Protection layer | Primary role | Typical chemical equipment examples | Key limitation |
|---|---|---|---|
| Inherently safer design | Reduce or remove the hazard before controls are needed | Lower inventory, less hazardous solvent, lower operating pressure, simplified transfer route | May be constrained by chemistry, product quality or existing equipment |
| Basic process control | Maintain normal operation | Reactor temperature control, distillation column pressure control, tank level control | Not always independent from the initiating failure |
| Operator alarm and response | Give operators time to diagnose and intervene | High temperature alarm, low cooling-water flow alarm, high tank level alarm | Depends on alarm quality, training, workload and available response time |
| Safety instrumented function | Automatically take action at a defined trip point | Close feed valve on high-high reactor temperature, stop pump on low suction level | Requires lifecycle management, proof testing and independence assumptions |
| Pressure relief | Limit pressure when prevention layers fail | Relief valve, rupture disc, emergency vent, flare connection | Does not prevent the upset; discharge handling must be suitable |
| Mitigation and emergency response | Reduce consequences after a release or fire starts | Diking, scrubber, deluge, gas detection, evacuation procedure | Effectiveness depends on detection, response time and scenario planning |
Good safety design also avoids double counting. If a high-level alarm uses the same transmitter as the control loop that failed, it may not be independent enough to be credited as a separate protective layer. If a shutdown valve is routinely bypassed for startup and the bypass is not controlled, the assumed protection may not exist during one of the most vulnerable operating periods.
How standards and regulations shape safety system decisions
Safety system design starts with the hazards, then with the applicable codes, standards and regulations. In the United States, OSHA’s Process Safety Management standard applies to covered processes involving highly hazardous chemicals above specified thresholds. EPA’s Risk Management Program rule applies to certain stationary sources with listed regulated substances above threshold quantities. These programs do not design a plant by themselves, but they establish expectations for process safety information, hazard analysis, operating procedures, mechanical integrity, management of change, incident investigation, emergency planning and audits.
For safety instrumented systems in the process industries, ISA/IEC 61511 is a widely used reference for the functional safety lifecycle. The lifecycle concept is important because it treats a safety function as more than a trip setting. It includes hazard and risk analysis, allocation of safety functions, safety requirements specification, design, installation, validation, operation, maintenance, modification and decommissioning.
Industry guidance from organizations such as the Center for Chemical Process Safety also emphasizes that automation should not be treated as a substitute for understanding the process hazard. A sophisticated control system cannot compensate for missing relief design data, unclear safe operating limits or poor maintenance of field instruments.
| Reference area | What it contributes | What plant teams still need to decide |
|---|---|---|
| OSHA process safety management | Framework for managing covered highly hazardous chemical processes | Which safeguards are safety critical and how they are maintained |
| EPA risk management program | Accidental release prevention, emergency preparedness and risk management planning for covered sources | How prevention and response measures fit the actual site and community context |
| ISA/IEC 61511 | Lifecycle approach for safety instrumented systems in process industry applications | Which functions require SIL assignment and how independence is demonstrated |
| Recognized engineering practices | Design basis for relief systems, electrical classification, fire protection, pressure equipment and instrumentation | Which edition, service condition and site-specific assumption apply |
Because rules and standards can change, project teams should confirm the current edition and jurisdictional requirements before design approval, procurement or audit closure. This is especially important for multinational projects, brownfield modifications and facilities subject to both occupational safety and environmental accident-prevention rules.
Safety instrumented systems are only one part of process safety
A safety instrumented system, often shortened to SIS, receives signals from sensors, processes logic and commands final elements such as valves or motor starters to bring the process to a safer condition. In chemical equipment, this may include shutting off reactant feed, stopping a pump, opening a quench valve, isolating a tank transfer or tripping a fired heater.
The clearest way to describe an SIS is by its safety instrumented functions. Each function should state the hazardous scenario, initiating condition, trip point, action, response time and required reliability. For example, a reactor high-high temperature trip may close the feed valve and open emergency cooling if the temperature exceeds a specified limit. That function should be linked to a documented hazard analysis, not added simply because an instrument is available.
Several design questions determine whether an SIS is credible:
- Are sensors, logic solvers and final elements sufficiently independent from the basic process control system?
- Can the final element move to the safe position under actual process conditions?
- Is the trip point far enough from the unsafe limit to allow response time?
- Are proof-test intervals realistic for the required reliability?
- Are bypasses, overrides and maintenance states controlled and recorded?
- Does the system fail to a defined safe state when power, instrument air or communication is lost?
Many SIS weaknesses are not caused by the logic solver. They come from plugged impulse lines, sticky valves, incorrect calibration, undocumented bypasses, shared utilities, poor proof testing or process changes that invalidate the original assumptions.
Alarms, relief devices and emergency shutdown need clear boundaries
Alarm systems are essential, but they are often overloaded. A high-quality alarm should be actionable, prioritized and tied to a defined operator response. If operators receive too many low-value alarms during a disturbance, the alarms can obscure the few that matter. Alarm rationalization helps identify which alarms are necessary, what priority they should have and how quickly operators must respond. See also: Storage Systems.
Pressure relief devices play a different role. They are generally last-line equipment protection against overpressure scenarios such as blocked outlet, external fire exposure, thermal expansion, utility failure or runaway reaction. Relief design must consider credible scenarios, two-phase flow where relevant, discharge routing, backpressure and safe disposal. A relief valve that opens correctly can still create a serious hazard if the released material is discharged to an unsuitable location.
Emergency shutdown systems sit between prevention and mitigation. They may isolate inventories, stop rotating equipment, shut fuel supplies, close remote-operated valves or start depressurization sequences. Their value depends on scenario-specific logic. An emergency shutdown that isolates a reactive vessel without providing cooling, venting or quench may not reduce risk. The shutdown action must match the chemistry, equipment limits and consequence analysis.
Maintenance and management of change keep systems credible
A safety system is reliable only when its condition is known. OSHA’s process safety framework emphasizes mechanical integrity for equipment such as pressure vessels, piping systems, relief and vent systems, emergency shutdown systems, controls, pumps and related devices in covered processes. In practical terms, this means identifying safety-critical equipment, defining inspection and test tasks, training maintenance personnel, correcting deficiencies and keeping records that show the equipment remains fit for service.
Management of change is just as important. Chemical equipment is often modified gradually: a new raw material, a different batch recipe, a replacement pump with higher capacity, a changed control valve, a revised startup procedure or a new cleaning solvent. Each change may seem small, but it can alter pressure relief loads, reaction rates, corrosion mechanisms, alarm response time or SIS demand frequency.
Before approving a change, plant teams should ask:
- Does the change affect safe operating limits?
- Does it introduce a new hazardous scenario or increase the severity of an existing one?
- Are alarms, trips and relief devices still sized and set correctly?
- Do procedures, training materials and drawings need revision?
- Does the change affect inspection intervals, spare parts or proof-test methods?
Where incidents occur, investigation should look beyond the failed component. A valve may be the visible failure, but deeper causes may include unclear responsibilities, inadequate testing, outdated drawings, weak permit control or a management decision that normalized operation with impaired safeguards.
A practical checklist for reviewing chemical equipment safety systems
The following checklist can help engineers, operators and maintenance teams review existing systems before a hazard analysis, audit, turnaround or equipment modification.
- Define the hazard. Identify what can go wrong, including overpressure, loss of cooling, wrong material addition, corrosion failure, toxic release and ignition.
- Confirm safe operating limits. Document limits for temperature, pressure, level, flow, concentration, impurity, agitation, vacuum and utility availability.
- Map safeguards to scenarios. Link each alarm, trip, relief device and procedure to a specific cause-consequence pair.
- Check independence. Verify that credited safeguards do not fail from the same initiating cause or shared utility without analysis.
- Review final elements. Confirm that valves, dampers, breakers and pumps can perform under the process conditions expected during the upset.
- Validate human response time. Make sure alarm response actions can be completed before the process reaches an unsafe state.
- Control bypasses. Require authorization, time limits, compensating measures and records for impaired safety functions.
- Test what matters. Proof tests should exercise enough of the sensor, logic and final element path to reveal dangerous failures.
- Update documents. Keep cause-and-effect charts, loop drawings, P&IDs, relief calculations and procedures consistent with the installed plant.
- Learn from demands and near misses. Treat unexpected trips, relief events and alarm floods as process safety signals, not only production interruptions.
This checklist does not replace a formal process hazard analysis or regulatory compliance review, but it helps expose the practical gaps that often separate a design drawing from field reality.
Frequently asked questions
Are safety systems the same as control systems?
No. A control system normally maintains stable operation within normal limits. A safety system is intended to prevent or mitigate hazardous conditions when normal control is insufficient or has failed. Some equipment may share information, but credited safety functions often require independence, defined testing and stricter management.
What is the difference between an alarm and a trip?
An alarm informs an operator that action is needed. A trip automatically takes a defined action, such as closing a valve or stopping a pump. Alarms depend on operator diagnosis and available response time, while trips depend on the reliability of sensors, logic and final elements.
Does every chemical process need a safety instrumented system?
Not necessarily. The need for an SIS depends on the hazard analysis and the required risk reduction after considering inherently safer design, basic controls, alarms, relief systems and other safeguards. Some hazards can be adequately managed without an SIS; others require independent automatic protection.
Why do safety systems fail in service?
Common reasons include hidden instrument failures, plugged sensing lines, valve sticking, poor calibration, undocumented bypasses, software or logic changes, inadequate testing and process changes that invalidate the original design assumptions. Many failures are management-system failures as much as hardware failures.
How often should safety systems be tested?
Testing frequency should be based on the system’s required reliability, failure modes, service severity, manufacturer information, site experience and applicable standards. A fixed interval copied from another plant may be inappropriate if the chemicals, demand rate, environment or final elements are different.
